Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6301-ZO

Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6301-ZO

Deep Groove, Single Row, Ceramic, Open ZrO2 Ball Bearing
$83.33
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

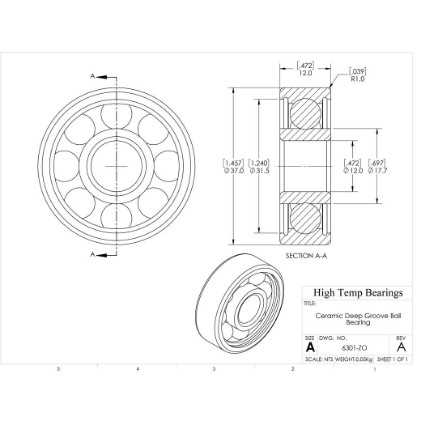

CAD
Specifications:
Attribute nameAttribute value
MaterialZrO2
SealsNone
Shaft Size12mm
D (mm)37
B (mm)12
d1 (mm)17.7
D2 (mm)31.5
C (lb)654
C0 (lb)283
Nmax (RPM)15000
Weight(lbs)0.1
Code101833
PackageQTY1
UOMEA
Bore (mm)12
C (kN)2.91
C0 (kN)1.26
Ra (mm)1
Da (mm)31.4
damin (mm)17.6
kr30
ka0.25
fo11
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
SeriesZrO2
Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential.One notable weakness is high-temperature steam will degrade Zirconia.
