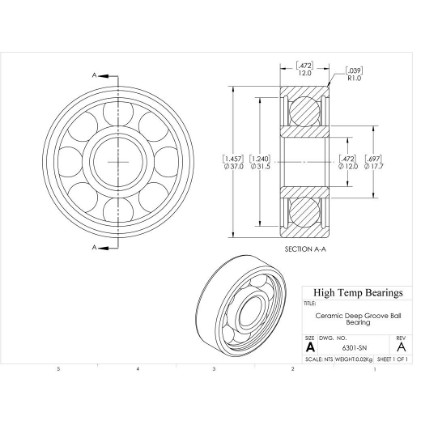

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6301-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6301-SN

Deep Groove, Single Row, Ceramic, Open, Si3N4
$107.80
This product has a minimum quantity of 2
CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)12
D (mm)37
B (mm)12
d1 (mm)17.7
D2 (mm)31.5
C (lb)545
C0 (lb)236
Nmax (RPM)17500
Weight(lbs)0.05
Code101830
PackageQTY1
UOMEA
C (kN)2.425
C0 (kN)1.05
Ra (mm)1
Da (mm)31.4
damin (mm)17.6
kr30
ka0.25
fo11
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
