1200°C Silicon Carbide Deep Groove Ball Bearing: 6301-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6301-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$112.10
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

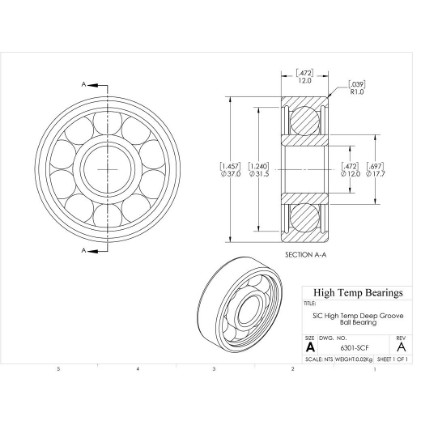

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Shaft Size12mm
D (mm)37
B (mm)12
d1 (mm)17.7
D2 (mm)31.5
C (lb)436
C0 (lb)189
Nmax (RPM)10500
Weight(lbs)0.05
Code101829
PackageQTY1
UOMEA
Bore (mm)12
C (kN)1.94
C0 (kN)0.84
Ra (mm)1
Da (mm)31.4
damin (mm)17.6
kr30
ka0.25
fo11
r (mm)1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
MaterialSiC
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.
