Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6301-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6301-SC

Deep Groove, Single Row, Ceramic, Open, SiC
$115.50
This product has a minimum quantity of 5

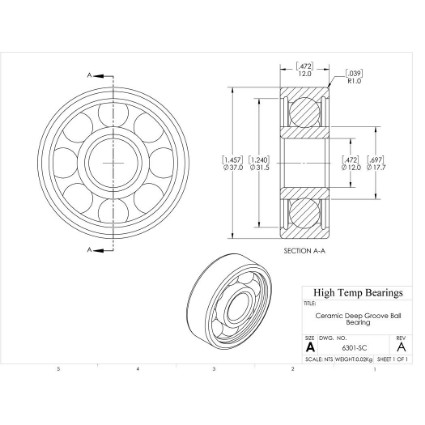

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)12
D (mm)37
B (mm)12
d1 (mm)17.7
D2 (mm)31.5
C (lb)436
C0 (lb)189
Nmax (RPM)15000
Weight(lbs)0.05
Code101827
PackageQTY1
UOMEA
C (kN)1.94
C0 (kN)0.84
Ra (mm)1
Da (mm)31.4
damin (mm)17.6
kr30
ka0.25
fo11
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
