400°C Zirconium Oxide Deep Groove Ball Bearing: 6300-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6300-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$43.64
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

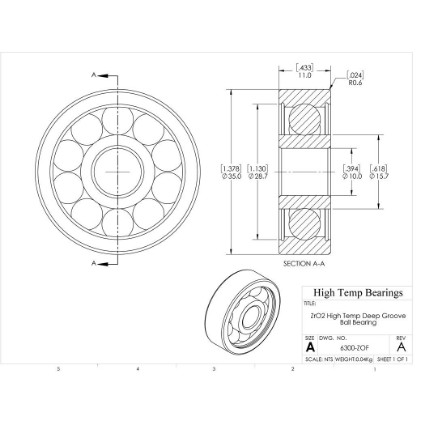

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)10
D (mm)35
B (mm)11
d1 (mm)15.7
D2 (mm)28.7
C (lb)546
C0 (lb)233
Nmax (RPM)11340
Weight(lbs)0.09
Code270063
PackageQTY1
UOMEA
C (kN)2.43
C0 (kN)1.035
Ra (mm)0.6
Da (mm)30.8
damin (mm)14.2
kr30
ka0.25
fo11
r (mm)0.6
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
