Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6300-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6300-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$41.07
This product has a minimum quantity of 5

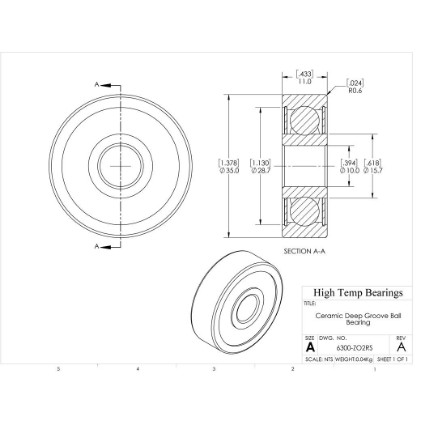

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)10
D (mm)35
B (mm)11
d1 (mm)15.7
D2 (mm)28.7
C (lb)546
C0 (lb)233
Nmax (RPM)16200
Weight(lbs)0.09
Code101820
PackageQTY1
UOMEA
C (kN)2.43
C0 (kN)1.035
Ra (mm)0.6
Da (mm)30.8
damin (mm)14.2
kr30
ka0.25
fo11
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
