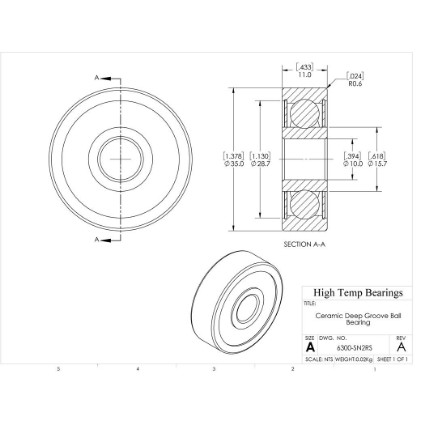

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6300-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6300-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$74.44
This product has a minimum quantity of 2
CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)10
D (mm)35
B (mm)11
d1 (mm)15.7
D2 (mm)28.7
C (lb)455
C0 (lb)194
Nmax (RPM)18900
Weight(lbs)0.05
Code101818
PackageQTY1
UOMEA
C (kN)2.025
C0 (kN)0.863
Ra (mm)0.6
Da (mm)30.8
damin (mm)14.2
kr30
ka0.25
fo11
r (mm)0.6
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
