1200°C Silicon Carbide Deep Groove Ball Bearing: 6300-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6300-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$78.54
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

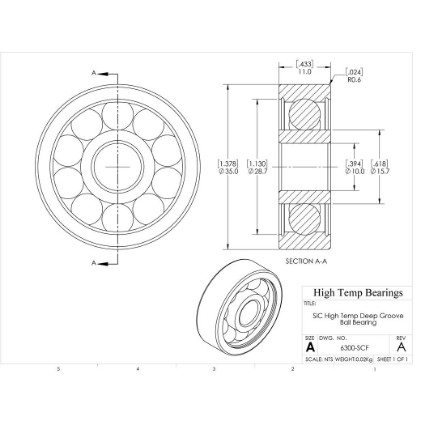

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)10
D (mm)35
B (mm)11
d1 (mm)15.7
D2 (mm)28.7
C (lb)364
C0 (lb)155
Nmax (RPM)11340
Weight(lbs)0.05
Code270061
PackageQTY1
UOMEA
C (kN)1.62
C0 (kN)0.69
Ra (mm)0.6
Da (mm)30.8
damin (mm)14.2
kr30
ka0.25
fo11
r (mm)0.6
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
