800°C Silicon Nitride Deep Groove Ball Bearing: 6220-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6220-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$3,791.70
This product has a minimum quantity of 3

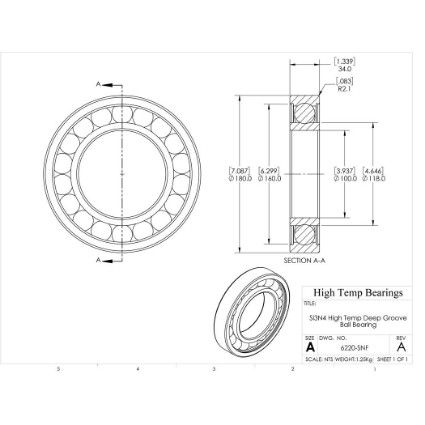

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)100
D (mm)180
B (mm)34
d1 (mm)118
D2 (mm)160
C (lb)6857
C0 (lb)5232
Nmax (RPM)2107
Weight(lbs)2.75
Code101778
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)30.5
C0 (kN)23.275
Ra (mm)2
Da (mm)169
damin (mm)111
kr25
ka0.5
fo14
r (mm)2.1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
