1200°C Silicon Carbide Deep Groove Ball Bearing: 6220-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6220-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$4,530.91
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

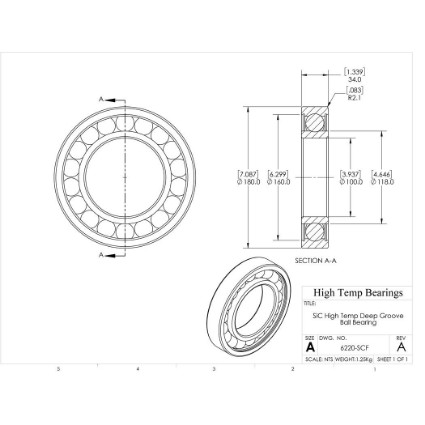

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Shaft Size100mm
D (mm)180
B (mm)34
d1 (mm)118
D2 (mm)160
C (lb)5485
C0 (lb)4186
Nmax (RPM)1806
Weight(lbs)2.75
Code101775
PackageQTY1
UOMEA
Bore (mm)100
C (kN)24.4
C0 (kN)18.62
Ra (mm)2
Da (mm)169
damin (mm)111
kr25
ka0.5
fo14
r (mm)2.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
MaterialSiC
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.
