Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6220-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6220-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$5,590.15
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

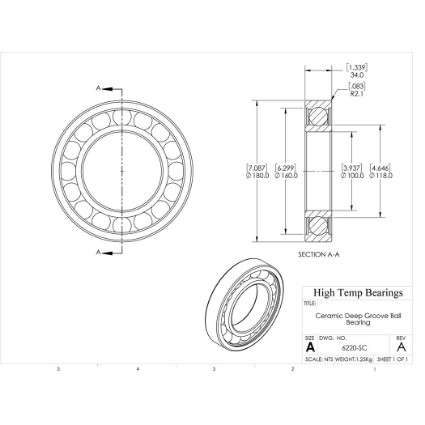

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)100
D (mm)180
B (mm)34
d1 (mm)118
D2 (mm)160
C (lb)5485
C0 (lb)4186
Nmax (RPM)2580
Weight(lbs)2.75
Code101773
PackageQTY1
UOMEA
C (kN)24.4
C0 (kN)18.62
Ra (mm)2
Da (mm)169
damin (mm)111
kr25
ka0.5
fo14
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
