400°C Zirconium Oxide Deep Groove Ball Bearing: 6219-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6219-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$2,037.92
This product has a minimum quantity of 3

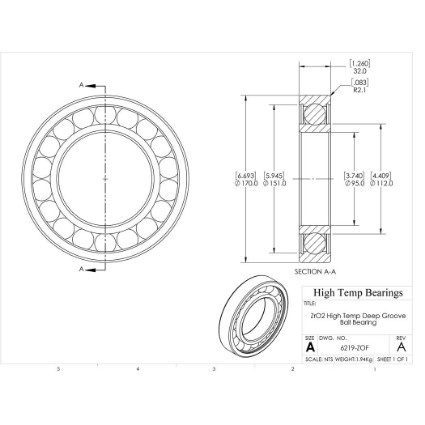

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)95
D (mm)170
B (mm)32
d1 (mm)112
D2 (mm)151
C (lb)7351
C0 (lb)5524
Nmax (RPM)1890
Weight(lbs)4.28
Code101757
PackageQTY1
UOMEA
SeriesZrO2
C (kN)32.7
C0 (kN)24.57
Ra (mm)2
Da (mm)159
damin (mm)106
kr25
ka0.5
fo14
r (mm)2.1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
