Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6219-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6219-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$4,532.69
This product has a minimum quantity of 2
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

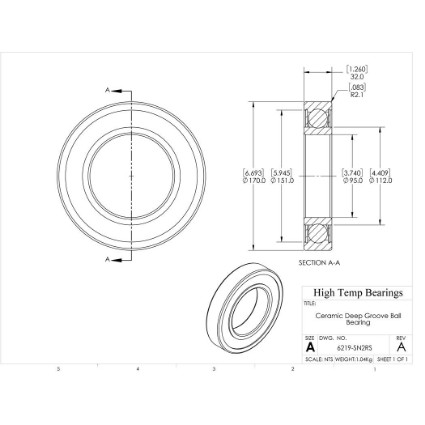

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)95
D (mm)170
B (mm)32
d1 (mm)112
D2 (mm)151
C (lb)6126
C0 (lb)4603
Nmax (RPM)3150
Weight(lbs)2.28
Code101753
PackageQTY1
UOMEA
C (kN)27.25
C0 (kN)20.475
Ra (mm)2
Da (mm)159
damin (mm)106
kr25
ka0.5
fo14
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
