Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6219-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6219-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$5,020.35
This product has a minimum quantity of 5

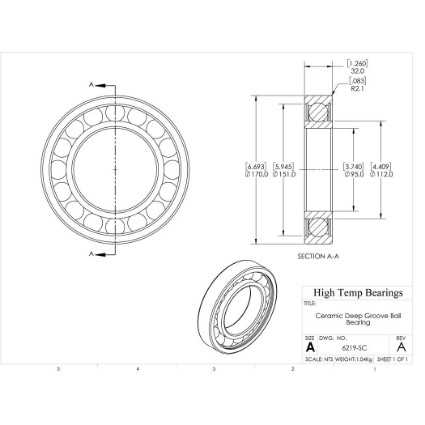

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)95
D (mm)170
B (mm)32
d1 (mm)112
D2 (mm)151
C (lb)4901
C0 (lb)3682
Nmax (RPM)2700
Weight(lbs)2.28
Code101749
PackageQTY1
UOMEA
C (kN)21.8
C0 (kN)16.38
Ra (mm)2
Da (mm)159
damin (mm)106
kr25
ka0.5
fo14
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
