400°C Zirconium Oxide Deep Groove Ball Bearing: 6218-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6218-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$1,845.42
This product has a minimum quantity of 3

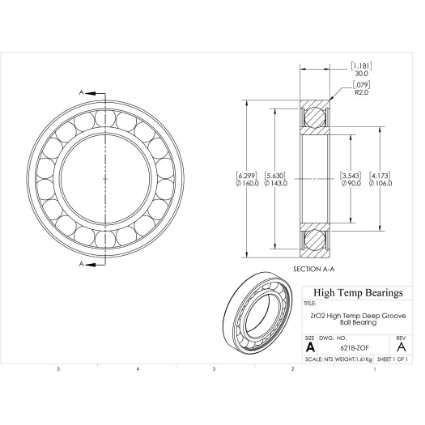

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)90
D (mm)160
B (mm)30
d1 (mm)106
D2 (mm)143
C (lb)6481
C0 (lb)4822
Nmax (RPM)2016
Weight(lbs)3.56
Code101743
PackageQTY1
UOMEA
SeriesZrO2
C (kN)28.83
C0 (kN)21.45
Ra (mm)2
Da (mm)149
damin (mm)101
kr25
ka0.5
fo15
r (mm)2
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
