Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6218-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6218-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$1,845.42
This product has a minimum quantity of 3

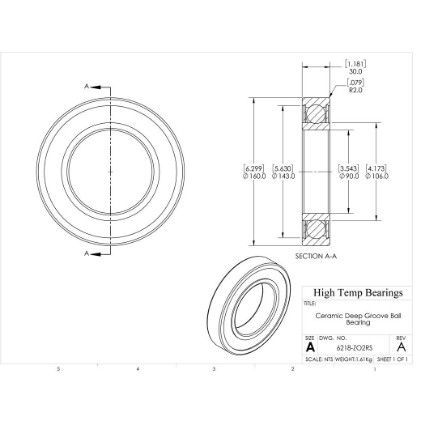

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)90
D (mm)160
B (mm)30
d1 (mm)106
D2 (mm)143
C (lb)6481
C0 (lb)4822
Nmax (RPM)2880
Weight(lbs)3.56
Code101742
PackageQTY1
UOMEA
C (kN)28.83
C0 (kN)21.45
Ra (mm)2
Da (mm)149
damin (mm)101
kr25
ka0.5
fo15
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
