800°C Silicon Nitride Deep Groove Ball Bearing: 6218-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6218-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$3,137.21
This product has a minimum quantity of 3

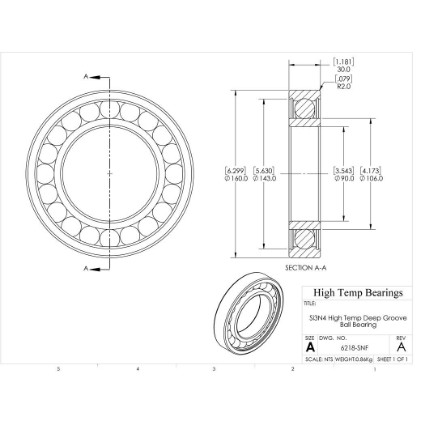

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)90
D (mm)160
B (mm)30
d1 (mm)106
D2 (mm)143
C (lb)5401
C0 (lb)4018
Nmax (RPM)2352
Weight(lbs)1.9
Code101740
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)24.025
C0 (kN)17.875
Ra (mm)2
Da (mm)149
damin (mm)101
kr25
ka0.5
fo15
r (mm)2
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
