Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6218-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6218-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$4,329.93
This product has a minimum quantity of 2
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

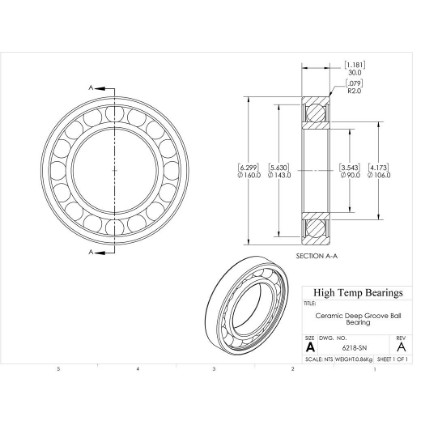

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)90
D (mm)160
B (mm)30
d1 (mm)106
D2 (mm)143
C (lb)5401
C0 (lb)4018
Nmax (RPM)3360
Weight(lbs)1.9
Code101738
PackageQTY1
UOMEA
C (kN)24.025
C0 (kN)17.875
Ra (mm)2
Da (mm)149
damin (mm)101
kr25
ka0.5
fo15
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
