Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6218-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6218-SC2RS

Deep Groove, Single Row, Ceramic, Sealed SiC Ball Bearing
$4,581.46
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

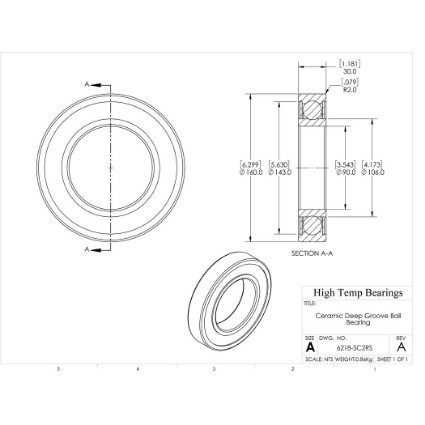

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)90
D (mm)160
B (mm)30
d1 (mm)106
D2 (mm)143
C (lb)4321
C0 (lb)3215
Nmax (RPM)2880
Weight(lbs)1.9
Code101736
PackageQTY1
UOMEA
C (kN)19.22
C0 (kN)14.3
Ra (mm)2
Da (mm)149
damin (mm)101
kr25
ka0.5
fo15
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
