Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6217-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6217-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$4,075.84
This product has a minimum quantity of 5

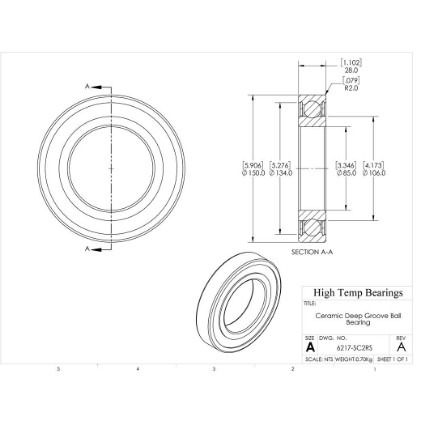

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)85
D (mm)150
B (mm)28
d1 (mm)106
D2 (mm)134
C (lb)3777
C0 (lb)2783
Nmax (RPM)3000
Weight(lbs)1.53
Code101723
PackageQTY1
UOMEA
C (kN)16.8
C0 (kN)12.38
Ra (mm)2
Da (mm)141
damin (mm)94
kr25
ka0.5
fo15
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
