Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6216-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6216-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$1,768.42
This product has a minimum quantity of 3

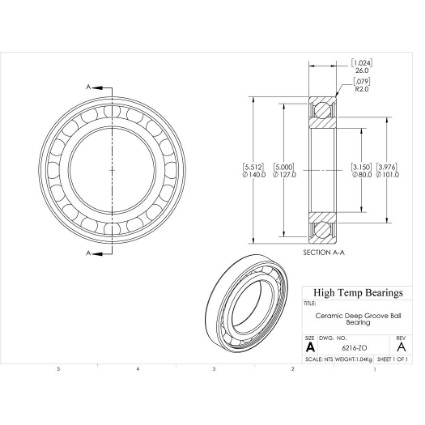

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)80
D (mm)140
B (mm)26
d1 (mm)101
D2 (mm)127
C (lb)4903
C0 (lb)3574
Nmax (RPM)3180
Weight(lbs)2.28
Code101714
PackageQTY1
UOMEA
C (kN)21.81
C0 (kN)15.9
Ra (mm)2
Da (mm)129
damin (mm)91
kr25
ka0.5
fo15
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
