800°C Silicon Nitride Deep Groove Ball Bearing: 6216-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6216-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$3,006.31
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

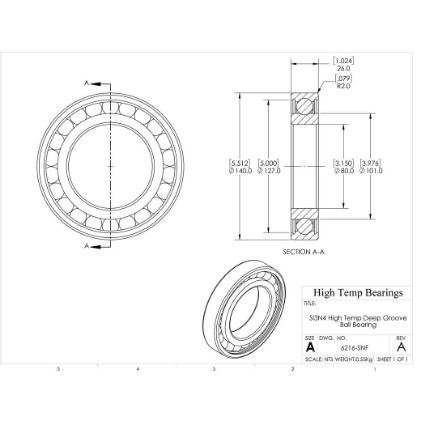

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)80
D (mm)140
B (mm)26
d1 (mm)101
D2 (mm)127
C (lb)4086
C0 (lb)2979
Nmax (RPM)2597
Weight(lbs)1.22
Code101713
PackageQTY1
UOMEA
C (kN)18.175
C0 (kN)13.25
Ra (mm)2
Da (mm)129
damin (mm)91
kr25
ka0.5
fo15
r (mm)2
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
