1200°C Silicon Carbide Deep Groove Ball Bearing: 6216-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6216-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$3,183.15
This product has a minimum quantity of 5

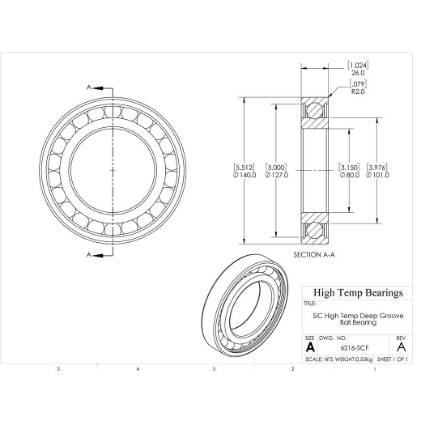

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)80
D (mm)140
B (mm)26
d1 (mm)101
D2 (mm)127
C (lb)3269
C0 (lb)2383
Nmax (RPM)2226
Weight(lbs)1.22
Code101710
PackageQTY1
UOMEA
SeriesSiC
C (kN)14.54
C0 (kN)10.6
Ra (mm)2
Da (mm)129
damin (mm)91
kr25
ka0.5
fo15
r (mm)2
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
