Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6216-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6216-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$3,182.64
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

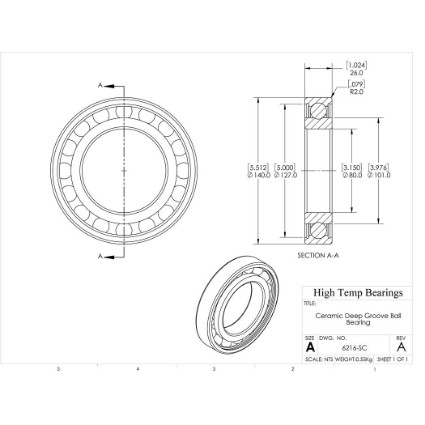

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)80
D (mm)140
B (mm)26
d1 (mm)101
D2 (mm)127
C (lb)3269
C0 (lb)2383
Nmax (RPM)3180
Weight(lbs)1.22
Code101708
PackageQTY1
UOMEA
C (kN)14.54
C0 (kN)10.6
Ra (mm)2
Da (mm)129
damin (mm)91
kr25
ka0.5
fo15
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
