Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6215-ZO

Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6215-ZO

Deep Groove, Single Row, Ceramic, Open ZrO2 Ball Bearing
$1,923.31
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

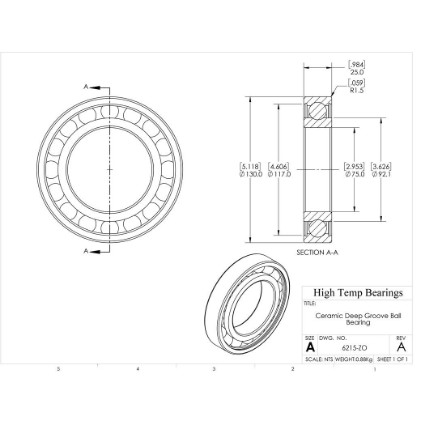

CAD
Specifications:
Attribute nameAttribute value
MaterialZrO2
SealsNone
Shaft Size75mm
D (mm)130
B (mm)25
d1 (mm)92.1
D2 (mm)117
C (lb)4546
C0 (lb)3257
Nmax (RPM)3360
Weight(lbs)1.94
Code101700
PackageQTY1
UOMEA
Bore (mm)75
C (kN)20.22
C0 (kN)14.49
Ra (mm)1.5
Da (mm)121
damin (mm)84
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
SeriesZrO2
Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential.One notable weakness is high-temperature steam will degrade Zirconia.
