800°C Silicon Nitride Deep Groove Ball Bearing: 6215-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6215-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$2,447.81
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

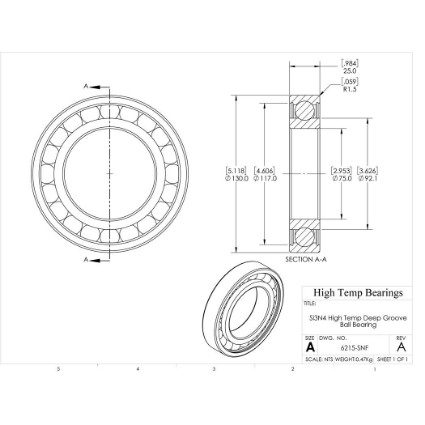

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)75
D (mm)130
B (mm)25
d1 (mm)92.1
D2 (mm)117
C (lb)3788
C0 (lb)2715
Nmax (RPM)2744
Weight(lbs)1.03
Code101699
PackageQTY1
UOMEA
C (kN)16.85
C0 (kN)12.075
Ra (mm)1.5
Da (mm)121
damin (mm)84
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
