Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6215-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6215-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$1,714.52
This product has a minimum quantity of 2
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

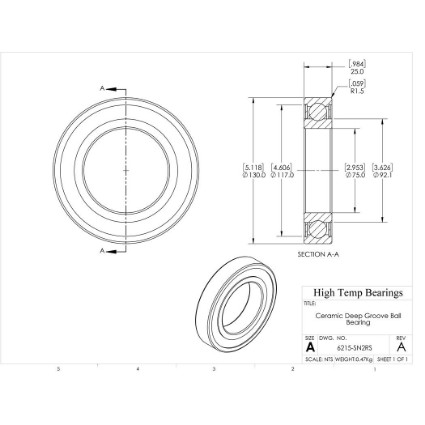

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)75
D (mm)130
B (mm)25
d1 (mm)92.1
D2 (mm)117
C (lb)3788
C0 (lb)2715
Nmax (RPM)3920
Weight(lbs)1.03
Code101698
PackageQTY1
UOMEA
C (kN)16.85
C0 (kN)12.075
Ra (mm)1.5
Da (mm)121
damin (mm)84
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
