Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6215-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6215-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$2,226.64
This product has a minimum quantity of 2
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

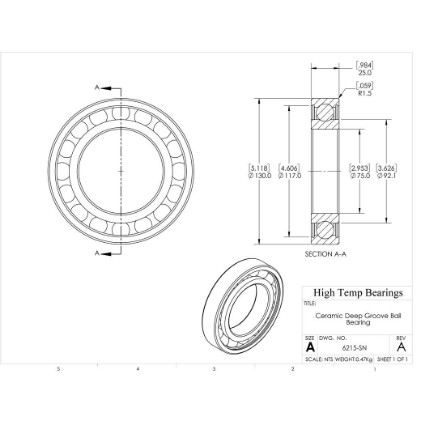

CAD
Specifications:
Attribute nameAttribute value
MaterialSi3N4
SealsNone
Shaft Size75mm
D (mm)130
B (mm)25
d1 (mm)92.1
D2 (mm)117
C (lb)3788
C0 (lb)2715
Nmax (RPM)3920
Weight(lbs)1.03
Code101697
PackageQTY1
UOMEA
Bore (mm)75
C (kN)16.85
C0 (kN)12.075
Ra (mm)1.5
Da (mm)121
damin (mm)84
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
SeriesSi3N4
Silicon Nitride has a good combination of mechanical, thermal, and electrical properties. It is extremely hard and has exceptional thermal shock, impact resistance, and high-temperature capabilities, with high creep, oxidation, and wear resistance but is exceptionally light in weight. Its low thermal and electrical conductivity is especially useful in applications where corrosion, electric or magnetic fields prohibit the use of metals. It is an excellent choice when high-temperature and high-load abilities are needed. However, it has a very low rate of thermal expansion that must be accommodated to prevent excessive tensile stress on the inner race.
