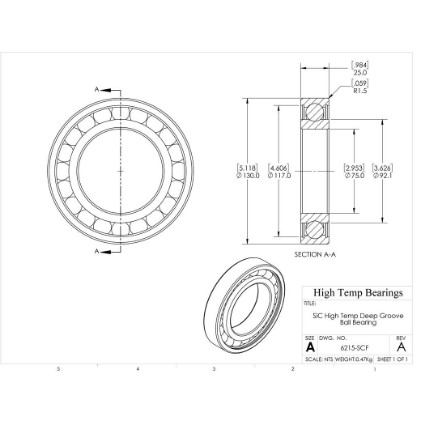

1200°C Silicon Carbide Deep Groove Ball Bearing: 6215-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6215-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$2,592.06
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)75
D (mm)130
B (mm)25
d1 (mm)92.1
D2 (mm)117
C (lb)3030
C0 (lb)2172
Nmax (RPM)2352
Weight(lbs)1.03
Code101696
PackageQTY1
UOMEA
SeriesSiC
C (kN)13.48
C0 (kN)9.66
Ra (mm)1.5
Da (mm)121
damin (mm)84
kr25
ka0.5
fo15
r (mm)1.5
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
