Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6215-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6215-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$2,664.18
This product has a minimum quantity of 5

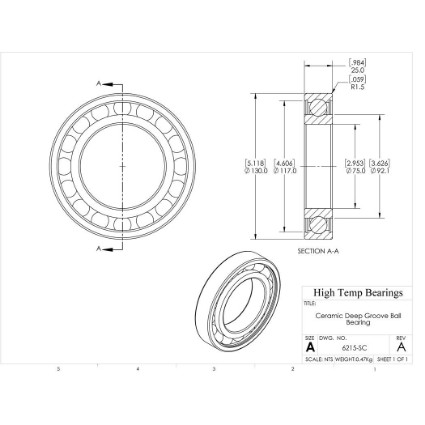

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)75
D (mm)130
B (mm)25
d1 (mm)92.1
D2 (mm)117
C (lb)3030
C0 (lb)2172
Nmax (RPM)3360
Weight(lbs)1.03
Code101694
PackageQTY1
UOMEA
C (kN)13.48
C0 (kN)9.66
Ra (mm)1.5
Da (mm)121
damin (mm)84
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
