800°C Silicon Nitride Deep Groove Ball Bearing: 6214-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6214-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$1,884.94
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

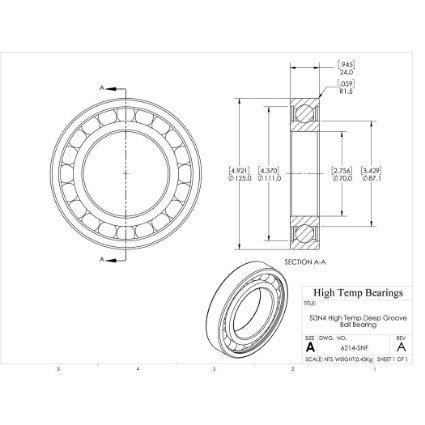

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)70
D (mm)125
B (mm)24
d1 (mm)87.1
D2 (mm)111
C (lb)3496
C0 (lb)2479
Nmax (RPM)3087
Weight(lbs)0.94
Code270058
PackageQTY1
UOMEA
C (kN)15.55
C0 (kN)11.025
Ra (mm)1.5
Da (mm)116
damin (mm)79
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
