Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6214-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6214-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$1,301.29
This product has a minimum quantity of 2

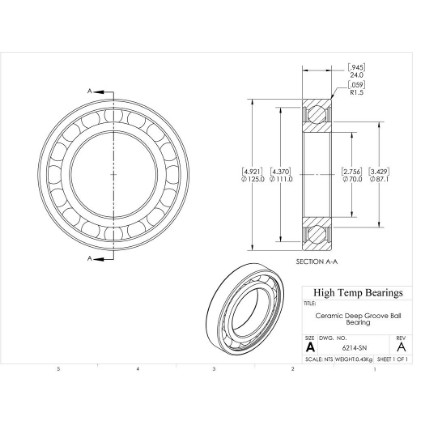

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)70
D (mm)125
B (mm)24
d1 (mm)87.1
D2 (mm)111
C (lb)3496
C0 (lb)2479
Nmax (RPM)4410
Weight(lbs)0.94
Code101686
PackageQTY1
UOMEA
C (kN)15.55
C0 (kN)11.025
Ra (mm)1.5
Da (mm)116
damin (mm)79
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
