1200°C Silicon Carbide Deep Groove Ball Bearing: 6214-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6214-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$1,995.82
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

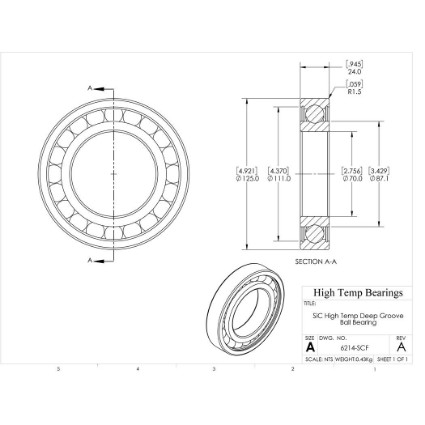

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)70
D (mm)125
B (mm)24
d1 (mm)87.1
D2 (mm)111
C (lb)2797
C0 (lb)1983
Nmax (RPM)2646
Weight(lbs)0.94
Code101685
PackageQTY1
UOMEA
C (kN)12.44
C0 (kN)8.82
Ra (mm)1.5
Da (mm)116
damin (mm)79
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
