Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6214-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6214-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$2,120.05
This product has a minimum quantity of 5

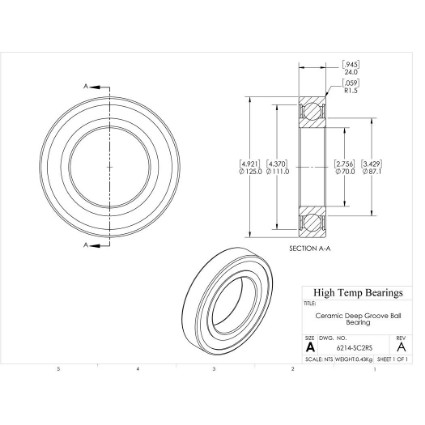

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)70
D (mm)125
B (mm)24
d1 (mm)87.1
D2 (mm)111
C (lb)2797
C0 (lb)1983
Nmax (RPM)3780
Weight(lbs)0.94
Code101684
PackageQTY1
UOMEA
C (kN)12.44
C0 (kN)8.82
Ra (mm)1.5
Da (mm)116
damin (mm)79
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
