70mm 6214 Deep Groove Open Ball Bearing|High Temp Bearings

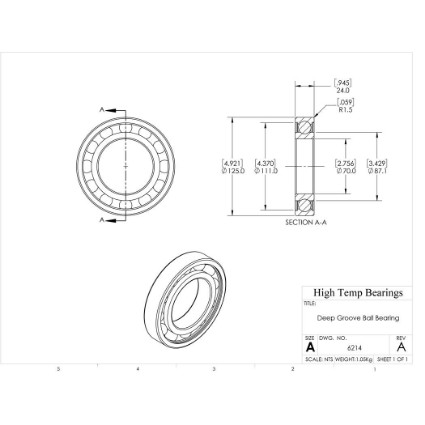

Picture of Deep Groove, Single Row, Open

Deep Groove, Single Row, Open Ball Bearing

$62.27

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		200299
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		6200
Construction		248F Open
Duty		Standard
Seals		None
Shaft Size		70mm
Material		52100

Dimensions

Attribute name		Attribute value
D (mm)		125
B (mm)		24
r (mm)		1.5
D2 (mm)		111
d1 (mm)		87.1
Bore (mm)		70

Abutment Dimensions

Attribute name		Attribute value
Ra (mm)		1.5
Da (mm)		116
damin (mm)		79

Calculation Data

Attribute name		Attribute value
Nr (RPM)	Reference speed	11000
Nmax (RPM)	Limiting speed	7000
kr	Minimum radial load factor	25
ka	Minimum axial load factor	0.5
fo	Calculation factor	15
C (lb)	Dynamic load capacity	14320
C0 (lb)	Static load capacity	10116
Pu (lb)	Fatigue load limit	427

Mass

Attribute name		Attribute value
Weight(lbs)		2.31

Tolerance Class

Attribute name		Attribute value
Clearance		C3

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
