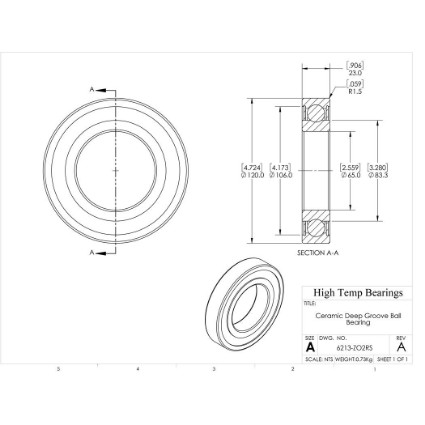

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6213-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6213-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$947.10
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)65
D (mm)120
B (mm)23
d1 (mm)83.3
D2 (mm)106
C (lb)3858
C0 (lb)2704
Nmax (RPM)3780
Weight(lbs)1.62
Code101676
PackageQTY1
UOMEA
C (kN)17.16
C0 (kN)12.03
Ra (mm)1.5
Da (mm)111
damin (mm)74
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
