800°C Silicon Nitride Deep Groove Ball Bearing: 6213-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6213-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$1,283.33
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

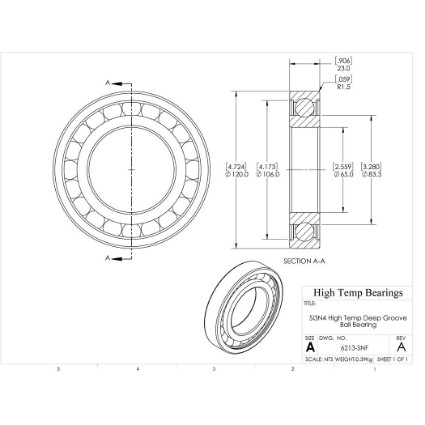

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)65
D (mm)120
B (mm)23
d1 (mm)83.3
D2 (mm)106
C (lb)3215
C0 (lb)2254
Nmax (RPM)3087
Weight(lbs)0.86
Code270056
PackageQTY1
UOMEA
C (kN)14.3
C0 (kN)10.025
Ra (mm)1.5
Da (mm)111
damin (mm)74
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
