Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6213-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6213-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$1,155.00
This product has a minimum quantity of 2

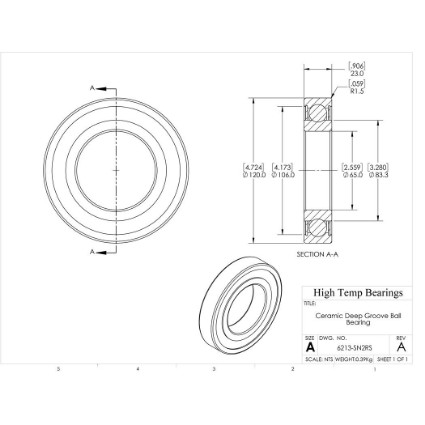

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)65
D (mm)120
B (mm)23
d1 (mm)83.3
D2 (mm)106
C (lb)3215
C0 (lb)2254
Nmax (RPM)4410
Weight(lbs)0.86
Code101674
PackageQTY1
UOMEA
C (kN)14.3
C0 (kN)10.025
Ra (mm)1.5
Da (mm)111
damin (mm)74
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
