Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6213-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6213-SC2RS

Deep Groove, Single Row, Ceramic, Sealed SiC Ball Bearing
$1,704.25
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

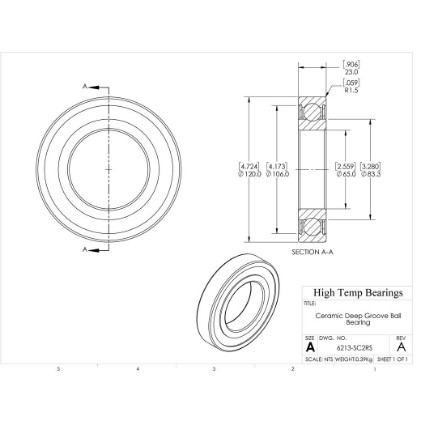

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)65
D (mm)120
B (mm)23
d1 (mm)83.3
D2 (mm)106
C (lb)2572
C0 (lb)1803
Nmax (RPM)3780
Weight(lbs)0.86
Code101672
PackageQTY1
UOMEA
C (kN)11.44
C0 (kN)8.02
Ra (mm)1.5
Da (mm)111
damin (mm)74
kr25
ka0.5
fo15
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
