400°C Zirconium Oxide Deep Groove Ball Bearing: 6212-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6212-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$482.53
This product has a minimum quantity of 3

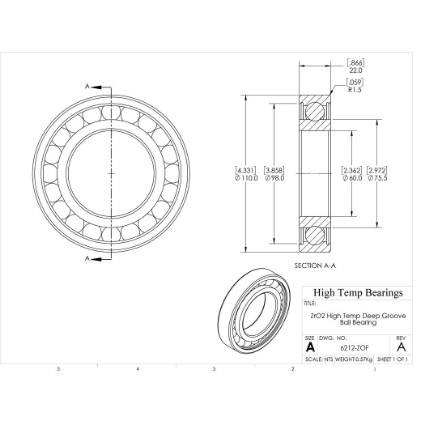

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)60
D (mm)110
B (mm)22
d1 (mm)75.5
D2 (mm)98
C (lb)3534
C0 (lb)2441
Nmax (RPM)2982
Weight(lbs)1.26
Code270055
PackageQTY1
UOMEA
C (kN)15.72
C0 (kN)10.86
Ra (mm)1.5
Da (mm)101
damin (mm)69
kr25
ka0.5
fo14
r (mm)1.5
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
