800°C Silicon Nitride Deep Groove Ball Bearing: 6212-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6212-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$820.30
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

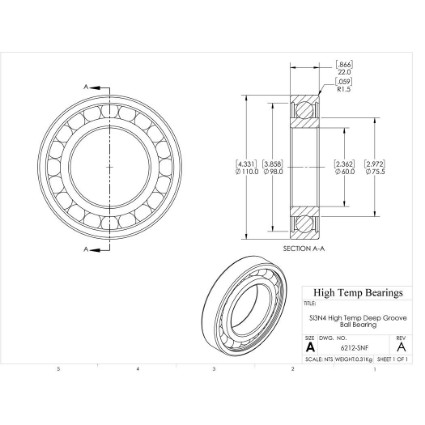

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)60
D (mm)110
B (mm)22
d1 (mm)75.5
D2 (mm)98
C (lb)2945
C0 (lb)2035
Nmax (RPM)3479
Weight(lbs)0.67
Code270054
PackageQTY1
UOMEA
C (kN)13.1
C0 (kN)9.05
Ra (mm)1.5
Da (mm)101
damin (mm)69
kr25
ka0.5
fo14
r (mm)1.5
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
