Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6212-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6212-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$841.86
This product has a minimum quantity of 2

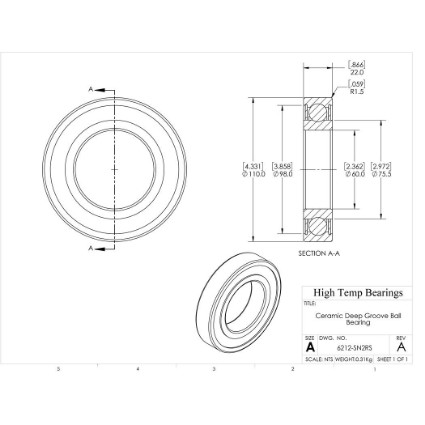

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)60
D (mm)110
B (mm)22
d1 (mm)75.5
D2 (mm)98
C (lb)2945
C0 (lb)2035
Nmax (RPM)4970
Weight(lbs)0.67
Code101663
PackageQTY1
UOMEA
C (kN)13.1
C0 (kN)9.05
Ra (mm)1.5
Da (mm)101
damin (mm)69
kr25
ka0.5
fo14
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
