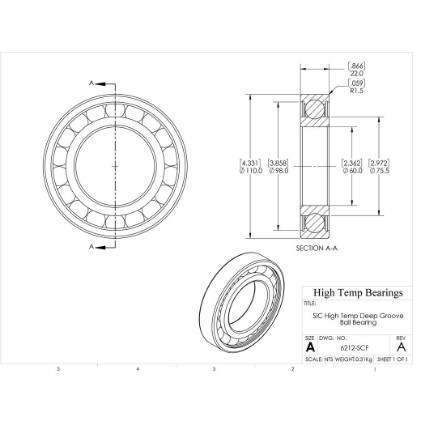

1200°C Silicon Carbide Deep Groove Ball Bearing: 6212-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6212-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$868.56
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)60
D (mm)110
B (mm)22
d1 (mm)75.5
D2 (mm)98
C (lb)2356
C0 (lb)1628
Nmax (RPM)2982
Weight(lbs)0.67
Code270053
PackageQTY1
UOMEA
SeriesSiC
C (kN)10.48
C0 (kN)7.24
Ra (mm)1.5
Da (mm)101
damin (mm)69
kr25
ka0.5
fo14
r (mm)1.5
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
