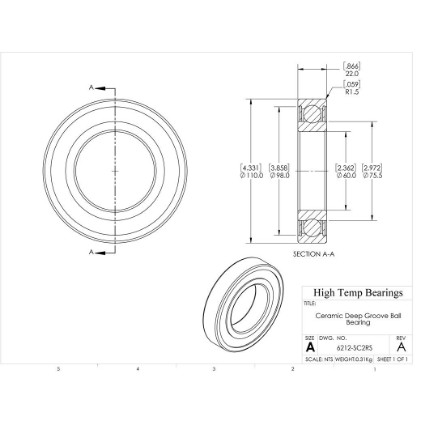

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6212-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6212-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$1,255.09
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)60
D (mm)110
B (mm)22
d1 (mm)75.5
D2 (mm)98
C (lb)2356
C0 (lb)1628
Nmax (RPM)4260
Weight(lbs)0.67
Code101661
PackageQTY1
UOMEA
C (kN)10.48
C0 (kN)7.24
Ra (mm)1.5
Da (mm)101
damin (mm)69
kr25
ka0.5
fo14
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
