400°C Zirconium Oxide Deep Groove Ball Bearing: 6211-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6211-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$462.00
This product has a minimum quantity of 3

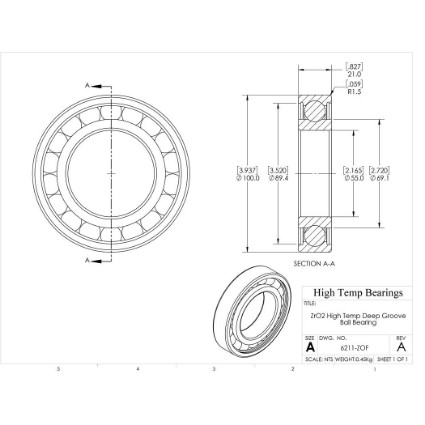

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)55
D (mm)100
B (mm)21
d1 (mm)69.1
D2 (mm)89.4
C (lb)2927
C0 (lb)1983
Nmax (RPM)3150
Weight(lbs)0.99
Code101655
PackageQTY1
UOMEA
SeriesZrO2
C (kN)13.02
C0 (kN)8.82
Ra (mm)1.5
Da (mm)91
damin (mm)64
kr25
ka0.5
fo14
r (mm)1.5
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
