Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6211-ZO

Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6211-ZO

Deep Groove, Single Row, Ceramic, Open ZrO2 Ball Bearing
$586.66
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

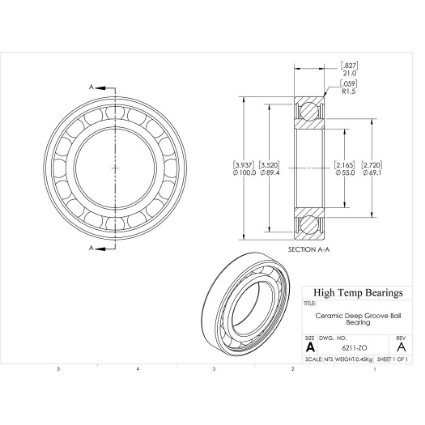

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Shaft Size55mm
D (mm)100
B (mm)21
d1 (mm)69.1
D2 (mm)89.4
C (lb)2927
C0 (lb)1983
Nmax (RPM)4500
Weight(lbs)0.99
Code101653
PackageQTY1
UOMEA
Bore (mm)55
C (kN)13.02
C0 (kN)8.82
Ra (mm)1.5
Da (mm)91
damin (mm)64
kr25
ka0.5
fo14
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential.One notable weakness is high-temperature steam will degrade Zirconia.
