Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6211-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6211-SN

Deep Groove, Single Row, Ceramic, Open, Si3N4
$680.16
This product has a minimum quantity of 3

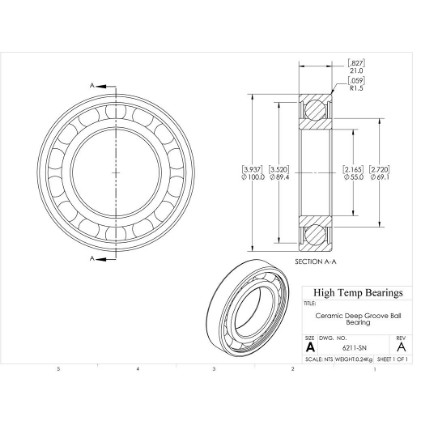

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)55
D (mm)100
B (mm)21
d1 (mm)69.1
D2 (mm)89.4
C (lb)2439
C0 (lb)1652
Nmax (RPM)5250
Weight(lbs)0.53
Code101650
PackageQTY1
UOMEA
C (kN)10.85
C0 (kN)7.35
Ra (mm)1.5
Da (mm)91
damin (mm)64
kr25
ka0.5
fo14
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
