1200°C Silicon Carbide Deep Groove Ball Bearing: 6211-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6211-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$757.72
This product has a minimum quantity of 5

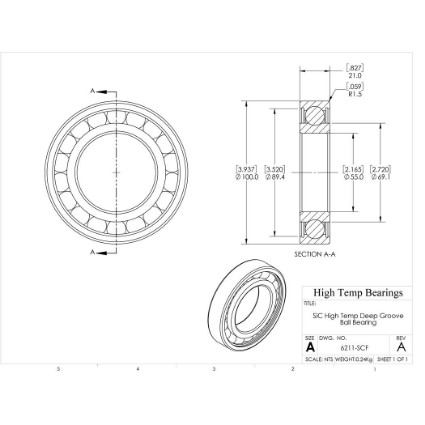

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)55
D (mm)100
B (mm)21
d1 (mm)69.1
D2 (mm)89.4
C (lb)1951
C0 (lb)1322
Nmax (RPM)3150
Weight(lbs)0.53
Code101649
PackageQTY1
UOMEA
C (kN)8.68
C0 (kN)5.88
Ra (mm)1.5
Da (mm)91
damin (mm)64
kr25
ka0.5
fo14
r (mm)1.5
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
