Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6210-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6210-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$608.30
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

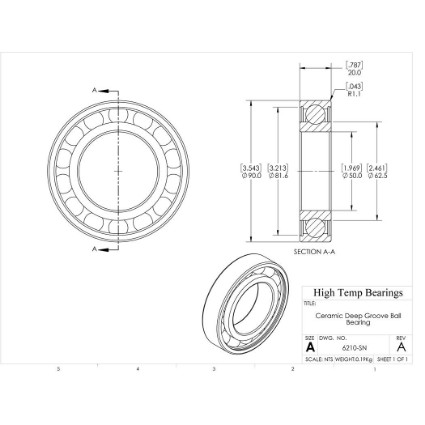

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)50
D (mm)90
B (mm)20
d1 (mm)62.5
D2 (mm)81.6
C (lb)1973
C0 (lb)1310
Nmax (RPM)5950
Weight(lbs)0.41
Code101638
PackageQTY1
UOMEA
C (kN)8.775
C0 (kN)5.825
Ra (mm)1
Da (mm)83
damin (mm)57
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
