Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6210-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6210-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$741.76
This product has a minimum quantity of 3

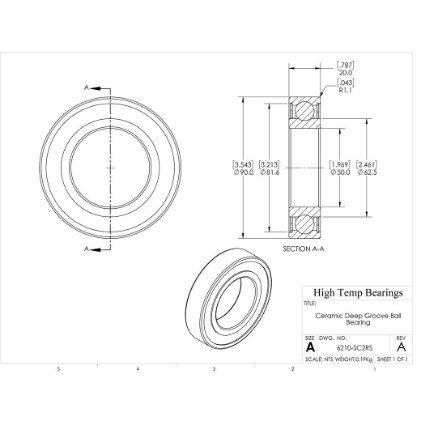

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)50
D (mm)90
B (mm)20
d1 (mm)62.5
D2 (mm)81.6
C (lb)1578
C0 (lb)1048
Nmax (RPM)5100
Weight(lbs)0.41
Code101637
PackageQTY1
UOMEA
C (kN)7.02
C0 (kN)4.66
Ra (mm)1
Da (mm)83
damin (mm)57
kr25
ka0.5
fo14
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
